Description

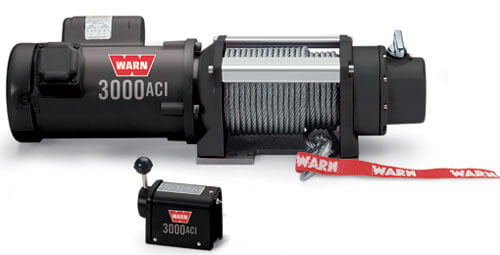

WARN 3000 ACI
3000 ACI SPECS
Capacity: 3,000 lbs. (1361 kgs) single line Switch Type: Drum switch/station type Motor: TEFC induction AC motor HP: 0.7 hp 56C
Power: 115/230 volt Geartrain: 3-Stage planetary Clutch: Lever-Actuated Sliding Brake: Dynamic and Mechanical Braking
Wire Rope: 5/16″ X 100′ (30.5 m) Fairlead: None Electrical Leads: None
Weight: 76 lbs. (34.5kg) Warranty: Limited One Year
Replacement Wire Rope: PN 27110
