Description
Service Exchange: Grade C
Quick Lift feature to reduce the time and effort needed to get saddle to gearbox.
Only a maximum of 30 pumps needed to reach full height.
Single foot pedal operation keeps hands free during lifting process.
Spring loaded dead man’s safety release control reduces the risk of inadvertent lowering.
Two-way hydraulic unit ensures that the saddle lowers at a controlled speed at all times, even without load.
Hydraulic unit larger than the economy models for improved performance and durability.
Saddle is reversible allowing a jack pad to be fitted to support items other than transmissions.
Castors and side handle make the units easily manoeuvrable.
Suitable for use with Optional Adjustable Gearbox Support – Model No. ADT3.

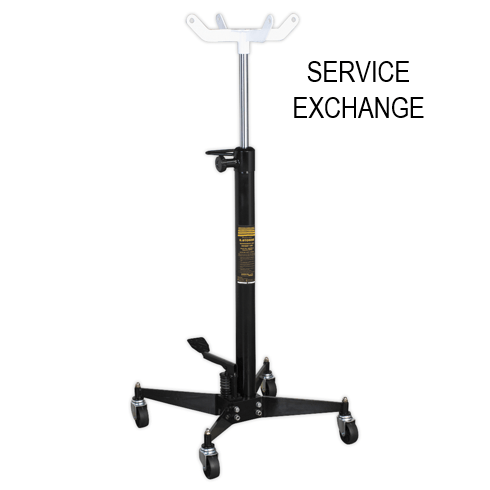

| Model No: | 600TRQ |
| Capacity: | 600kg |
| Ram Extensions: | 1 |
| Minimum Saddle Height: | 1125mm |
| Maximum Saddle Height: | 1950mm |
| Pump Strokes to Maximum Height: | 30 |
| Base Size: | 520 x 550mm |
| Fixed/Adjustable Saddle: | Fixed |
| Weight: | 36kg |
| Accessories (Optional): | ADT3 – Adjustable Gearbox Support |
