Description

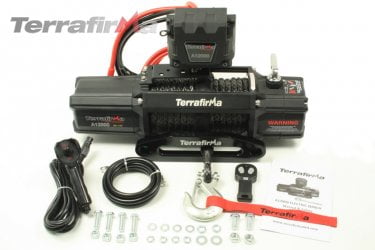

The A12000 incorporates all the features expected by commercial, recreational & competition off road users.
The new Terrafirma winch has a powerful 6hp, 12v motor combined with a low noise 3 stage planetary gearbox that gives 12000lb of pulling power.
It has modern styling, a high quality synthetic rope and comes supplied with both a wireless remote control and a standard cabled remote.
The silver-grey synthetic rope includes a rated safety hook and comes with a cool black alloy hawse fairlead.
The winch is finished in stealthy matt black with matching compact solenoid pack, with 2 green LED’s that indicate when the winch is live and ready for work.
The solenoid pack also added benefit of multiple mounting positions to suit your vehicle.
This winch is designed to fit the standard winch mounting points of 10″ x 4.5″ to allow fitment on most popular mounts and bumpers.
Rated line pull – 12000lbs (5443kgs) single line
Motor – Series wound 6.0hp / 4.4kw, 12V DC
Gear Train – 3 stage planetary
Gear Ratio – 265:1
Clutch – Sliding ring gear
Braking Action – Automatic in the drum
Fairlead – Made from Alloy
Synthetic Rope – 7/16″x79 (11mm x 24mm)
Mounting hole pattern – 10″ x 4.5″ (254mm x 114.3mm)
