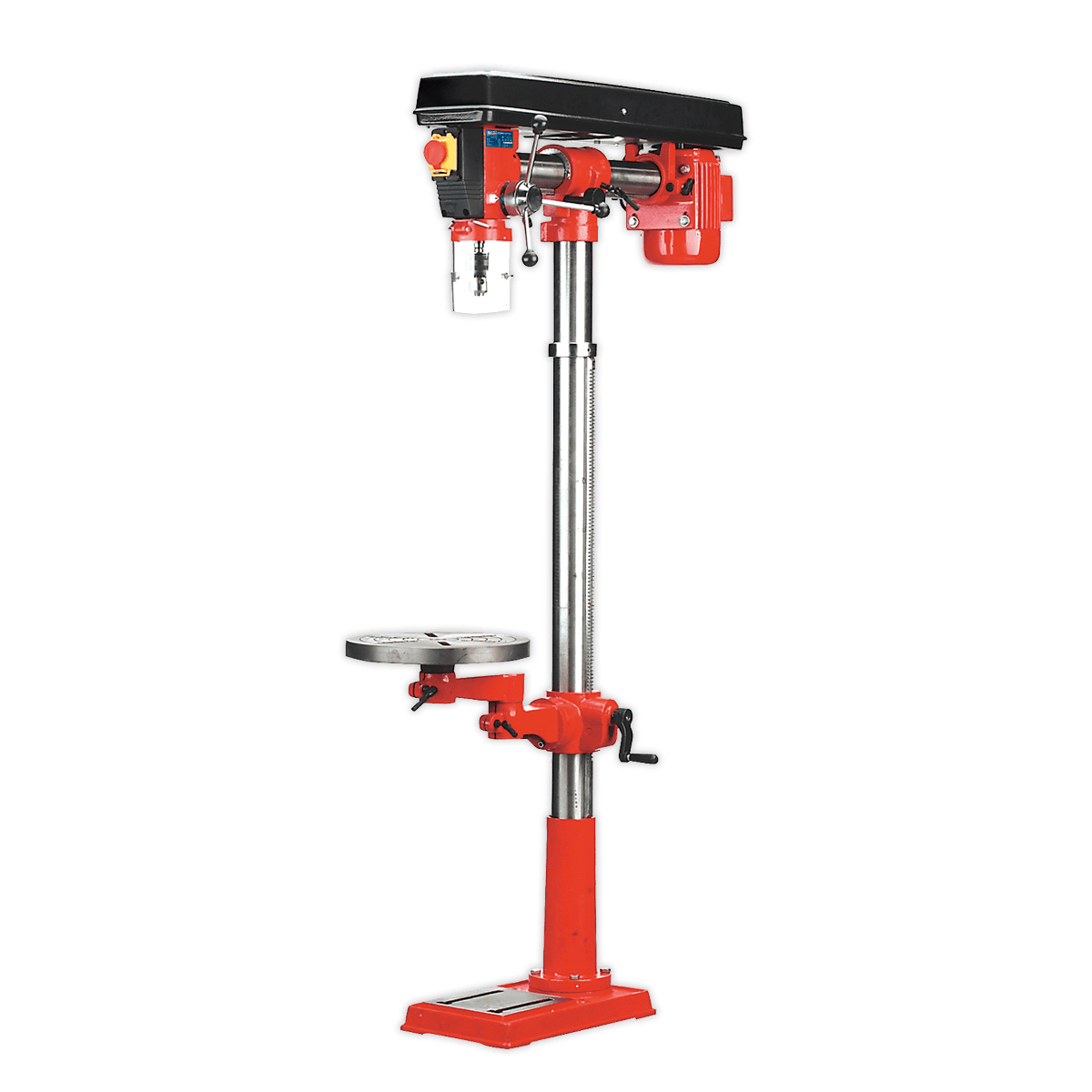

Description
• Heavy-duty construction.
• Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch.
• Radial feature allows off-table drilling and angle drilling.
• Features a maximum throat depth of 420mm.
• Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit.
• Also available as bench mounting type – GDM790BR.
• Mortise attachment available, order Model No. MA10.
• 16mm(5/8″) Capacity chuck, MT2.
• Height: 1620mm.
• Spindle Centre to Column – Max: 420mm.
• Motor Power: 550W.
• Column Diameter: 70mm.
• Spindle Travel: 80mm.
• Weight: 59kg.
