Description

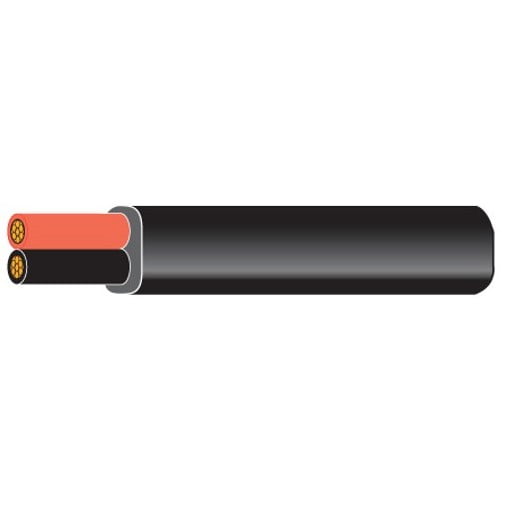

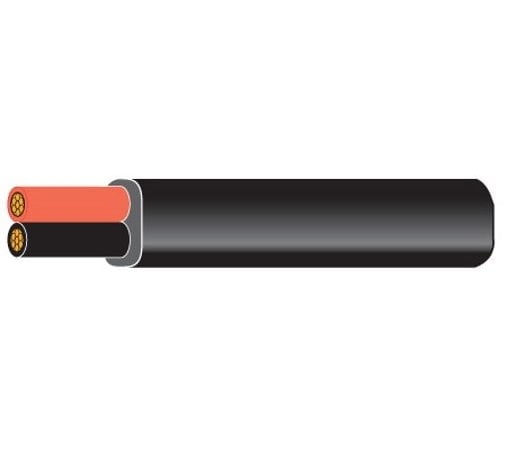

General purpose low voltage wiring cable suitable for use in the automotive, marine and allied industries.
SPECIFICATIONS
Cores manufactured to BS6862 Part 1 1971, where applicable
Plain copper conductors, PVC insulated
Suitable for use at temperatures from -30°C to 70°C
Twins and multicores PVC sheathed at 70°C
Suitable for 12v and 24v systems (Maximum 100v)
Resistant to petrol, diesel, lubricating oils and diluted acids
Bespoke core and sheathing colours available on singles, twins, multicore and speaker cables (subject to MOQs)
Part No:
*Conductor Specification (mm): 2 x 28/0.30
Conductor Cross Section (mm²): 2 x 2.0
Maximum Overall Dimensions (mm): 7.55 x 4.35
Nominal Current Rating (Amps)**: 17.5
*The conductor specifications shown are representative configurations, actual cable may differ slightly, but will meet resistance values shown. (Please refer to single core for resistance values).
**Nominal current amerpage ratings are provided as a guide only and can vary depending on application, conditions and environmental factors. If in doubt, please consult a qualified electrician.
