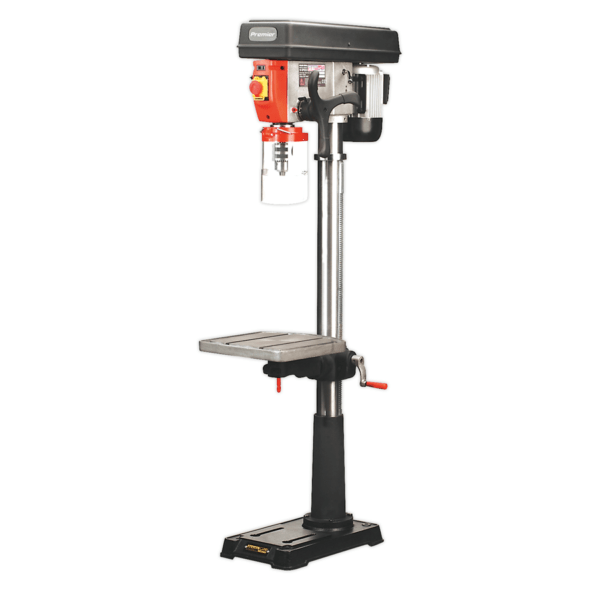

Pillar Drill Floor 16-Speed 1635mm Height 230V
• One of a comprehensive range of Premier floor standing pillar drills for the professional workshop.
• Features heavy-duty aluminium-bodied motor for long and reliable performance.
• No-volt release switch to prevent inadvertent start up and pulley cover protected by microswitch to prevent drill operating when cover is open.
• Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process.
• Supplied with flip-up chuck guard.
• Large sized square table fitted with precision rack and pinion height adjustment.
| Drilling Capacity (Chuck Size): | 20mm |
| Spindle Nose Taper: | MT3 |
| Swing: | 512mm |
| Spindle Centre to Column: | 216mm |
| Spindle Travel: | 80mm |
| Number of Speeds: | 16 |
| Speed Range: | 160-3000rpm |
| Maximum Distance Spindle to Table: | 720mm |
| Maximum Distance Spindle to Base: | 1230mm |
| Working Table Surface Size: | 356 x 356mm |
| Working Base Surface Size: | 205 x 200mm |
| Overall Base Size: | 495 x 290mm |
| Column Diameter: | 80mm |
| Collar Diameter: | 75mm |
| Overall Height: | 1635mm |
| Motor Power: | 750W (925W) |
| Supply: | 230V |
| Weight: | 86kg |
| Optional Keyless Chuck 16mm: | PDM/KC |
| Integral Work Light (Bulb not included): | Yes |
