Description

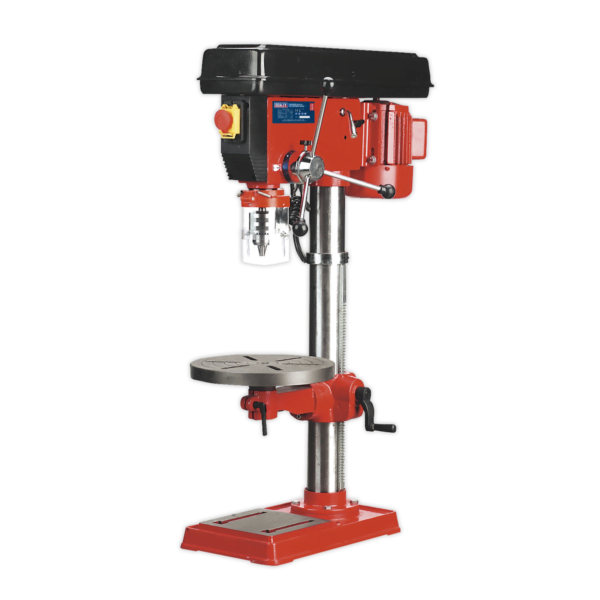

• One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications.
• Meets Safety of Machinery (Safety) Directives 1992 (and amendments).
• Safety devices fitted include a no-voltage release switch, allowing insurance company approval for use in educational establishments.
• Model No. GDM50B and up have Morse taper spindle housings for taking taper shank drill bits.
• All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection.
• All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work.
• Mortise attachment available, order Model No. MA10.
• 16mm(5/8″) Capacity chuck No. 2MT.
• Height: 1070mm.
• Spindle Centre to Column: 178mm.
• Motor Power: 450W, Input Power: 650W.
• Column Diameter: 80mm.
• Spindle Travel: 80mm.
• Weight: 60kg.
