Description

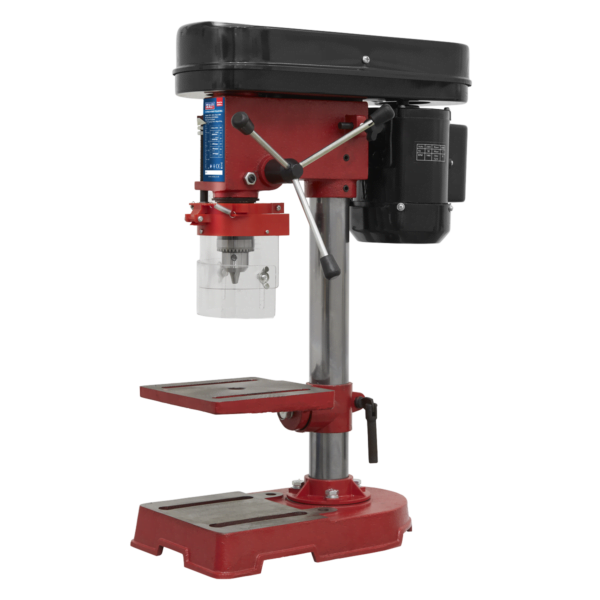

• One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications.
• Safety devices fitted include a no-volt release switch, allowing insurance company approval for use in educational establishments.
• Model No. GDM50B and up have Morse taper spindle housings for accepting taper shank drill bits.
• All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection.
• All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work.
• Mortise attachments are available for all Model No’s GDM120B – GDM200F inclusive.
• 13mm(1/2″) Capacity chuck.
• 5-Speed settings between 580 and 2650rpm.
• Height: 580mm.
• Chuck to Column: 104mm.
• Motor Power: 185W, Input Power: 350W.
• Column Diameter: Ø46mm.
• Spindle Travel: 50mm.
• Weight: 15.2kg.
