Description

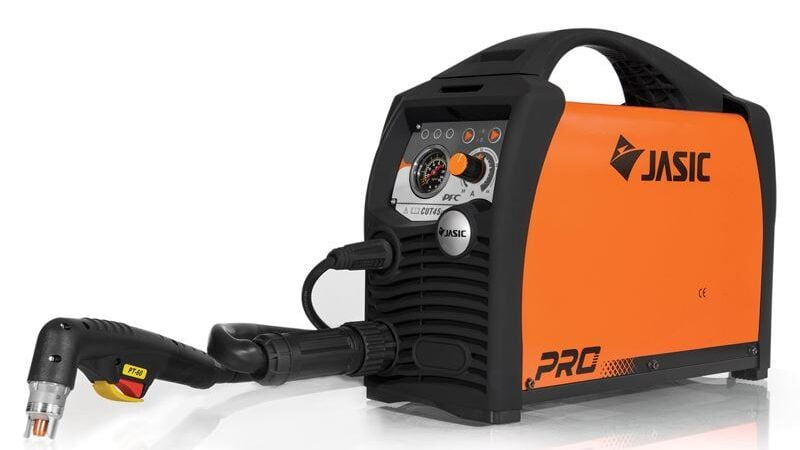

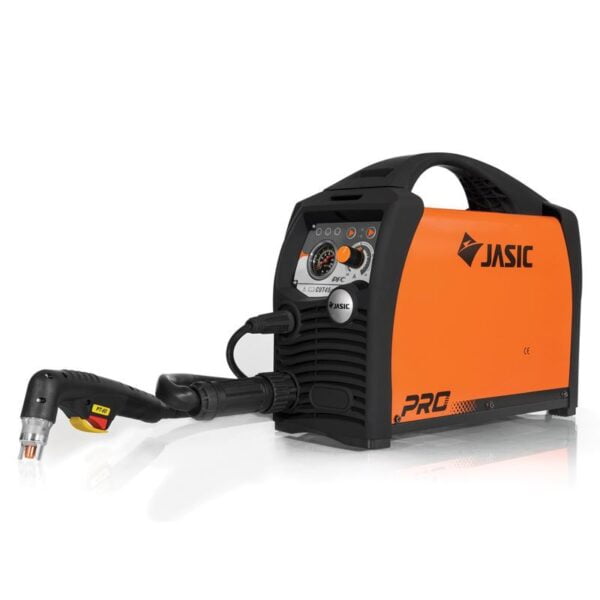

IGBT Plasma Inverter – Not a standard MMA inverter.
Light weight – Just 9kg makes this machine truly a portable plasma cutter.
Variable Cutting Control – Not just a one setting does everything like you get on cheaper machines.
Simple Operation – No messing, just cutting.
Smooth Precise Cutting – Less cleaning up of the cut areas is required.
| Input Voltage | 230V @ 50/60 Hz |
| Input Power (kVA) | 5.1 |
| Input Current (A) | 20 |
| Efficiency (%) | 80 |
| Current Range (A) | 20-45 |
| Duty Cycle | 45 A @ 35% |
| Clean Cut Capacity (mm) | 15 |
| Severance Cut Capacity (mm) | 20 |
| Power Factor | 0.99 |
| Protection / Insulation Class | IP21S/F |
| Compressed Air Requirement | 170 lpm (0.45 Mpa) |
| Dimensions (mm) | 439 x 165 x 328 |
| Weight (kg) | 9.2 |
