Description
Complies with the requirements of ATEX Directive 2014 / 34 / EU and Machinery Directive 2006 / 42 / EC
The William Hackett ATEX anti-spark Geared Travel Trollies meet and exceed the requirements of international standard and British Standard BS EN 13157:2004 + AI:2009.
This high quality trolley range is precision engineered in W.L.L. capacities from 500kg to 2 tonnes. Other sizes are available upon request.

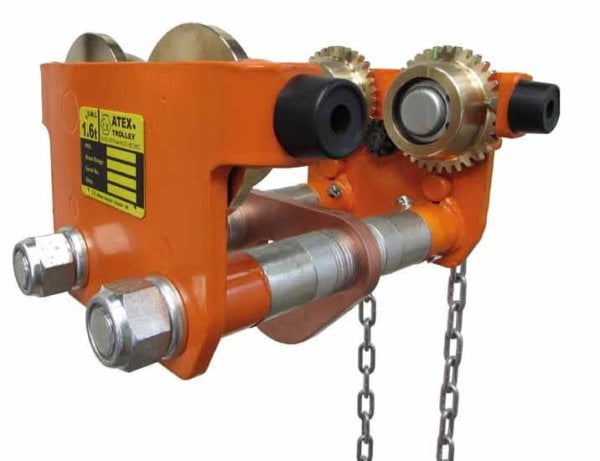

Enabling exact positioning or easy traversing of large loads incorporating manual hoists, the William Hackett series geared trolley can be supplied to suit various track widths within the standard beam range 1 and the extended beam range 2.
It has been designed so that the bottom of the hand chain loop is located approximately 500 mm from ground level.
The runners (trolley wheels) are precision machined and they rotate on maintenance sealed ball bearings.
All William Hackett geared trolleys are fitted with anti-jump bars and rubber end stops as standard. They are also fitted with solid bronze wheels and have a copper plated hanging plate.
Measurements:
A: 206mm
B: 180mm
C: 30mm
E: 26mm
