Description

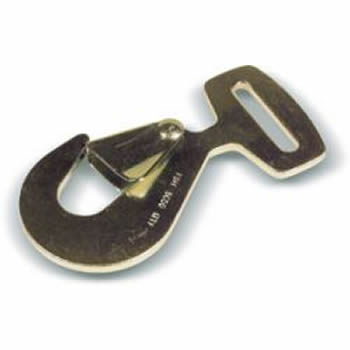

The FSH5050 is a pressed steel Flat Snap Hook designed for 50mm webbing. The hook is designed with a spring loaded safety catch that once engaged will not come detached; this offers a better level of security than standard hooks. The length of the hook is 153mm and the diameter of the hook will allow it to fit on to a 22mm bar. The hook is made from carbon steel and has a breaking strength (BS) of 5000kg.
The snap hook meets the requirements of the European Load Restraint Standard EN12195-2:2001 which requires the hook to have a lashing capacity (LC) of 2500daN stamped on the hook together with the suppliers name and the part number FSH5050. The breaking strength (BS) of 5000kg is also shown to indicate the maximum load that can be applied to the buckle before failure.
The FSH5050 is used in our range of 50mm ratchet straps.
Also available is a twisted version of this hook, the TSH5050
Breaking Force: 5000Kgf
Lashing Capacity: 2500daN
Width of Webbing: 50mm
Buckle Weight: 271 grams (0.271kg)
