Description

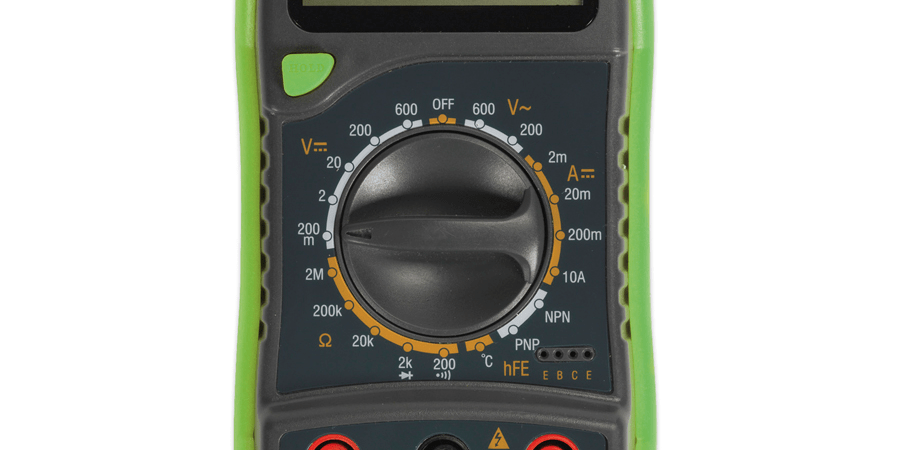

Digital Multimeter 8 Function with Thermocouple Hi-Vis
• Heavy-duty general purpose multimeter with clear and easy-to-read LCD display.
• Features data hold function, temperature probe and diode test facility.
• Housed in rugged rubber boot with integral stand.
• Supplied with full set of leads and probes.
• Measures:
– AC and DC Voltage
– DC Current
– Resistance
– Temperature
– Audible Continuity
– Diode/Transistor Verification Mode
| Model No: | MM20HV |
| Specification: | |
| AC Voltage (Accuracy): | 200V, 600V (±2%) |
| DC Voltage (Accuracy): | 200mV (±0.5%), 2V (±0.8%), 20V (±0.8%), 200V (±0.8%), 600V (±0.8%) |
| AC Current (Accuracy): | No |
| DC Current (Accuracy): | 2mA (±1%), 20mA (±1%), 200mA (±1.2%), 10A (±2%) |
| Resistance (Accuracy): | 200Ω, 2kΩ, 20kΩ, 200kΩ (±0.8%), 2MΩ (±1.2%) |
| Capacitance (Accuracy): | No |
| Temperature (Accuracy): | Range; -40°C-1000°C, (±1% up to 400°C), (±2% over 400°C) |
| Frequency (Accuracy): | No |
| Duty Cycle: | No |
| Continuity Audible: | Yes |
| Diode Test: | Yes |
| Transistor Test: | Yes |
| High-Impact Rubber Case: | Yes |
| Digits x Height: | 6 x 12mm |
| Low Battery Indicator: | Yes |
| Battery (Supplied): | 1 x 9V |
| Integral Stand: | Yes |
| Size (L x W x D): | 140 x 70 x 35mm |
| Weight: | 260g |
| Conformity: | IEC 1010 |
