SERVICE EXCHANGE ITEM GRADE A

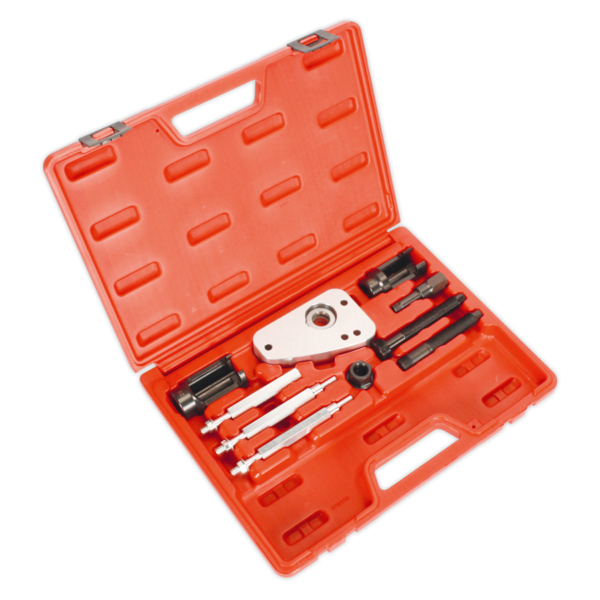

Diesel Injector Puller – Citroen, Peugeot
• Comprehensive set for removing Citroen/Peugeot 2.0/2.2HDi 16v fuel injectors.
• Allows the removal of seized injectors without the need to remove the cylinder head.
• Bridge fits perfectly on the cylinder head preventing damage to the area surrounding the injector.
• Supplied in carry-case.
| Model No: | VS2005 |
| Application(s): | Citroen 2.0HDi; C4 (04-13), C4 Picasso / Grand Picasso (06-13), DS4 (11-13), C5 (04-15), DS5 (12-15), C8 (02-10), Dispatch (99-12), Jumpy III (07-12), 2.2HDi: C5 (07-09), C6 (06-11), C8 (02-10), C-Crosser (07-12), Peugeot 2.0HDi; 307 (01-09), 308 (07-16), |
| Engine Codes: | DW10ATD (RHY), DW10ATED (RHS, RHW, RHZ), DW10ATED4/L4 (RHT), DW10ATED4 (RHM, RHW), DW10BTED/L3 (RHX, RHZ), DW10BTED (RHX), DW10BTED4 (RHF, RHJ, RHL, RHR), DW10C (RHD, RHH), DW10CD (AHZ), DW10CTED4 (RHC, RHD, RHE, RHH, RH02), DW10FD (AHX), DW10JATED4 (RHM, |
| Contents: | Pulling Bridge, Bridge Leg (x3), Security Hex Key; 10mm, Injector Cap Sockets; Ø25, Ø29mm, Injector Force Screw Threads; Ø17mm Male x 1mm Pitch, Ø25mm x 1mm Pitch, Injector Force Screw Nut |
