Description

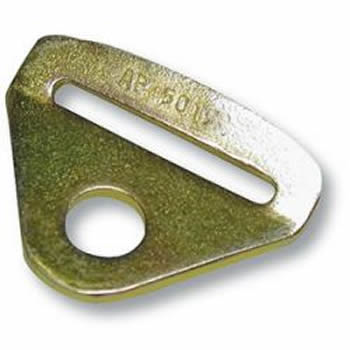

The AP5015 Anchor plate is used in conjunction with 50mm webbing and is used to make a permanent connection to a floor or wall. The anchor plate has a 15mm diameter bolt hole and can be sewn on either end of your ratchet strap. The AP5015 cranked anchor plate is manufactured from 4mm carbon steel and has a breaking strength of 1500kg.
The anchor plate meets the requirements of the European Load Standard EN12195-2:2001 which requires the buckle to have a lashing capacity (LC) of 750daN. This capacity is stamped on the ratchet together with the suppliers name GTF® and part number AP5015 for full traceability. The breaking strength (BS) of 1500Kg is also shown to indicate the maximum load that can be applied to the fitting before failure.
Breaking Force: 1500Kgf
Lashing Capacity: 750daN
Width of Webbing: 50mm
Buckle Weight: 65 grams (0.065Kg)
