Description
JASIC is an international developer, manufacturer and supplier of welding inverters and integrated welding solutions that represent value, reliability, durability and innovation. An international sales network in 60 countries – JASIC has a worldwide reputation for providing the highest quality with exceptional service. In March 2011, JASIC was successfully launched on the Shenzhen stock exchange and now has realistic ambitions to become the largest manufacturer of welding inverters in the world today. JASIC UK are the exclusive sales and service partner for Shenzhen Jasic Technology for the UK and Ireland. We offer a comprehensive range of welding & cutting inverters from stock covering the MMA, TIG DC, TIG AC/DC, MIG/MAG and Plasma Cutting processes. Jasic welding inverters are available to buy through a network of reputable authorised welding distributors.

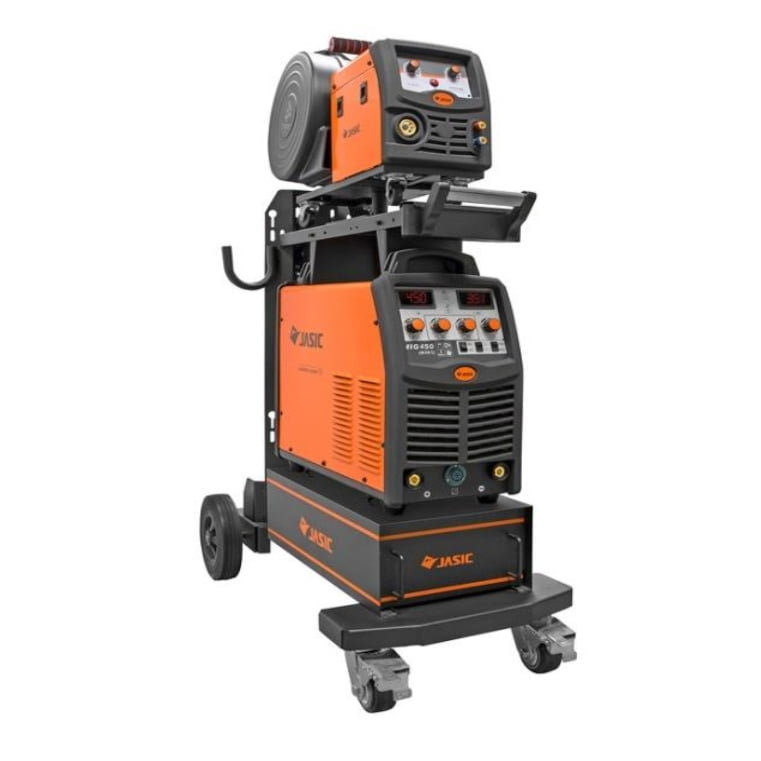

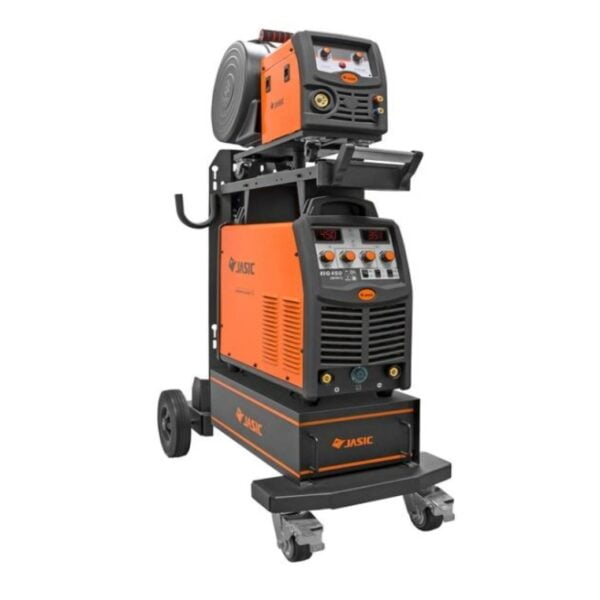

The product is supported with a comprehensive 5 year warranty when you register your welding inverter(s) on this website within 28 days of purchase. Jasic’s modern manufacturing site is over 80,000m² and is arguably the largest and most advanced welding inverter manufacturing base in the world. The production capacity is 1 million welding inverters per year. Jasic’s Welding Engineering Centre offers several brand new advanced auto production lines, supporting auto chip mounter, auto insertion machine and comprehensive debugging cabinet to achieve highly advanced manufacturing production. The manufacturing site is equipped with 13 auto welder assembly lines with self-recovery tooling plate function, 2000m² SMT & AI workshop (temperature, humidity and dust control, relative clean workshop), 10,000m² PCBA workshop (Epoxy self-levelling floor anti-static production workshop). Jasic Mig 452S Multiprocess Mig Welder Key Features • Suitable for 0.6, 0.8, 1.0 and 1.2mm wire • Burn back control & wire inching • IGBT MIG MAG/MMA Inverter • Digital amp and voltmeter
• Advanced control circuitry • 2T/4T trigger function • Power & status LED’s • Variable inductance • Gas check function • High duty cycle Input Voltage (3 Phase) AC 400V – 50/60Hz Recommended Input Fuse (A) 45
Current Range (A) 60 – 450 MIG Voltage Range (V) 15 – 40 No-Load Voltage (V) 72 Wire Speed (m/min) 1 – 18 Duty Cycle @ 40°C MMA 400A @ 80% MIG 400A @ 100% Wire Spool Size ø 300mm MMA Range (A) 30 – 400 Power Factor 0.91 Protection/Insulation Class IP21S Recommended Generator Size (kVA)* 20 Dimensions (mm) 760 x 365 x 585 Weight: Power Source & Feeder (Kg) 53 *Generators should be AVR Storage Box Air cooled model only replaced when fitted with optional water cooling unit Optional Water Cooling Unit JWC-05 Jasic Mig 452S Multiprocess Mig Welder.
