Description
Features
1 position torque limited in forward around 370 ft.lbs / 500 Nm
1920 ft.lbs / 2600 Nm max torque (3 setting positions)
Ergonomic D-handle with full teasing trigger
Pinless closed reinforced rocking dog mechanism
Rubber bumper protecting both applications & tool (included)
Socket retainer ring combined with hole retainer
Ergonomic handle

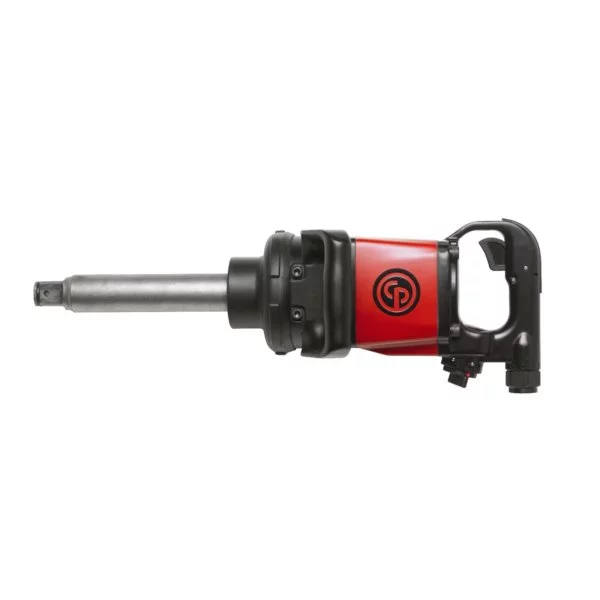

Model CP7782TL-6
Part number 8941077827
Actual air consumption 19.2 l/s 40.7 cfm
Air inlet thread size 1/2 ”
Average air consumption 4.8 l/s 10 cfm
Blows per minute 500
Bolt size M32 mm
European Directives 2006/42/EC (17/05/2006)
European Sound standard ISO 15744
European Standards EN ISO 11148-6:2012
Free speed 5200 rpm
Height 171.8 mm 6.76 ”
Length 510.8 mm 20.11 ”
Maximum Torque (reverse) 2600 Nm 1920 ft.lbs
Min. hose size 13 mm 1/2 ”
Net weight 11.6 kg 25.55 lb
Power/weight ratio 257.4 Nm/kg 86.5 ft.lb/lb
Sound Power 111 db(A)
Sound pressure 100 db(A)
Sound uncertainty 3 db(A)
Square drive 1 ”
Vibration 7.8 m/s²
Vibration ISO ISO-28927-2
Vibration uncertainty (K) 1.8 m/s²
Width 210.6 mm 8.29 ”
Working Torque Range (fwd) 400 – 440 Nm 295 – 325 ft.lbs
